SMA Inverter
- Maximum efficiency of 98.4 %.
- Integrated DC surge arrester (DPS type II)
- DC input voltage up to 1000 V
- Perfect system design thanks to the multistring concept
- Innovative network management functions thanks to Integrated Plant Control
- 24-hour reactive power supply (Q on Demand 24/7)

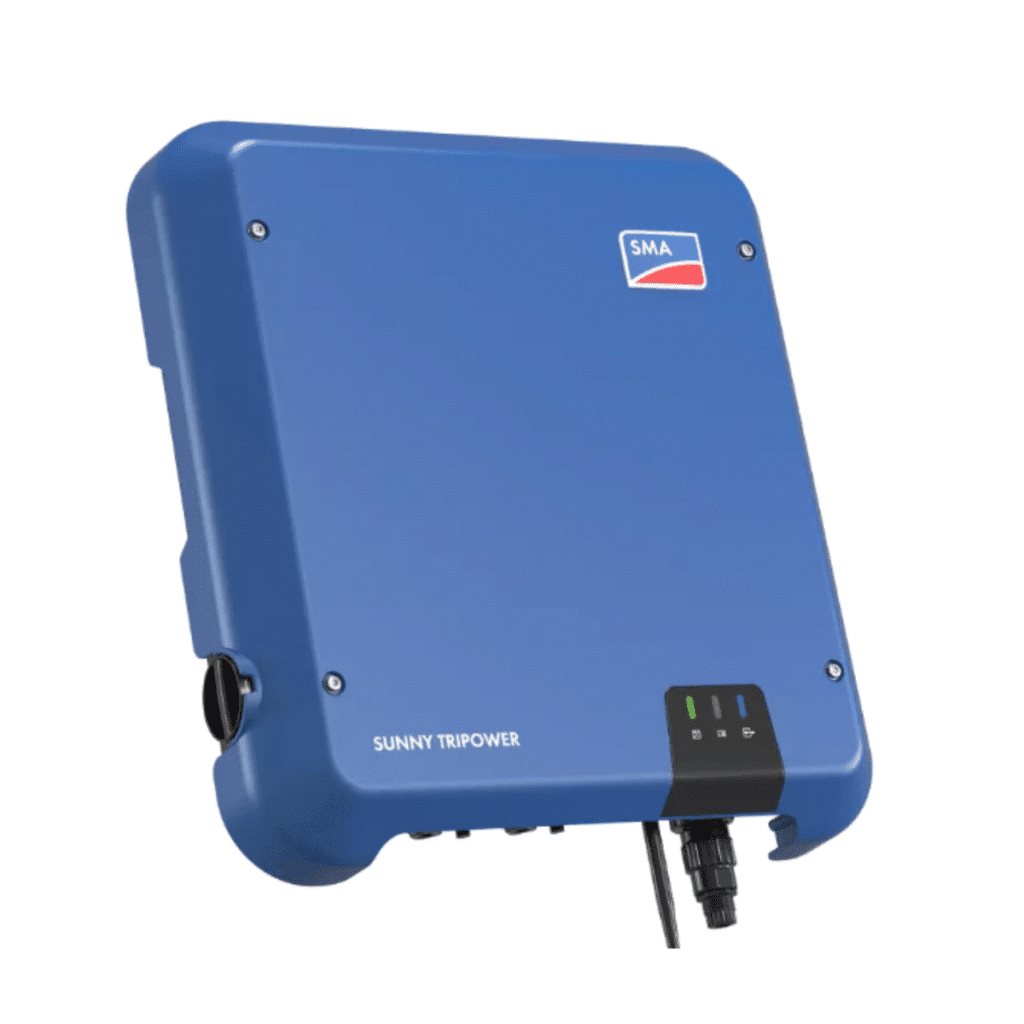

Three-phase solar inverter for self-consumption or SMA grid connection of 20000W AC with 2 MPPT with an efficiency of 98% and a maximum input current of 33 A per input with OptiCool cooling system. The Sunny Tripower line stands out for its cost-effectiveness, safety, extensive flexibility and new power management features.
The Sunny Tripower inverters are protected against short circuits, overloads and high temperatures and will provide trouble-free operation of your three-phase solar system for many years. Grid-connected inverter for solar systems with an excellent price/performance ratio. Does not include transformer and offers IP65 protection.
Product warranty of 5 years.
The solar inverters of the Sunny Tripower family are characterized by the following features:
- - Maximum efficiency of 98.4 %.
- - Integrated DC surge arrester (DPS type II)
- - DC input voltage up to 1000 V
- - Perfect system design thanks to the multistring concept
- - Innovative network management functions thanks to Integrated Plant Control
- - 24-hour reactive power supply (Q on Demand 24/7)
|
Model |
Sunny Tripower 20000TL |
|
Input (CC) |
|
|
Max power. DC |
20440 W |
|
Max voltage. Entrance |
1000V |
|
MPP Voltage Range |
320 V to 800 V/600 V |
|
Min/start input voltage |
150 V/188 V |
|
Max current. Input A / Input B |
33A / 33A |
|
Number of independent MPP inputs / strings per MPP input |
2 / A:3; B:3 |
|
Output (AC) |
|
|
Power (at 230 V, 50Hz) |
20000W |
|
Max. apparent AC power |
20000 VA |
|
Ac rated voltage |
3/N/PE; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE; 240 V / 415 V |
|
AC voltage range |
180V to 280V |
|
AC network frequency/ range |
50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
|
Assigned mains frequency / assigned mains voltage |
50Hz / 230V |
|
Max output current / output assigned current |
29 A / 29 A |
|
Power factor to assigned power / Adjustable lag factor |
1 / 0 inductive to or capacitive |
|
THD |
≤ 3% |
|
Injection / connection phase |
3 /3 |
|
EfficiencyMax. / European Efficiency |
98.4% / 98% |
|
Protective elements |
|
|
Internal disconnect point |
● |
|
Grounding/network monitoring |
● / ● |
|
DC Surge Charger: DPS Type II |
○ |
|
Reverse polarization protection in DC / AC short circuit capability / galvanic isolation |
● / ● / - |
|
Residual All-pole-sensitive monitoring unit |
● |
|
Protection class (IEC 62109-1) /voltage category (IEC 62109-1) |
I/ AC:III;DC:II |
|
General Data |
|
|
Dimensions (width / height / length) |
661 mm / 682 mm / 264 mm (26.0 / 26.9 / 10.4 inches) |
|
Weight |
61 kg (134.48 lbs) |
|
Operating Temperature Range |
\u201225°C to +60°C (\u201213°F to +140°F) |
|
Emisiónruido, typically |
51 dB(A) |
|
Self-consumption (night) |
1 W |
|
Topology |
No transformer |
|
Cooling type |
OptiCool |
|
Degree of protection (based on IEC 60529) |
IP65 |
|
Climate category (based on IEC 60721-3-4) |
4K4H |
|
Max value. allowed for relative humidity (non-condensing) |
100% |
|
Equipment |
|
|
ConnectionDC / ConnectionAC |
SUNCLIX / Terminal Connection Edge |
|
Screen |
○ |
|
Interface: RS485, Speedwire/Webconnect |
○ / ● |
|
Data Interface: SMA Modbus / SunSpec Modbus |
● / ● |
|
Multifunction Relay/Power Control Module |
○ / ○ |
|
OptiTrack Global Peak/Integrated Plant Control/Q on Demand 24/7 |
● / ● / ● |
|
Compatible with isolated networks/with SMA Fuel Save Controller |
● / ● |
|
Warranty: 5 / 10 / 15 years |
● / ○ / ○ |
|
Certificates and approvals |
ANRE 30, AS 4777, BDEW 2008, C10/11:2012, CE, CEI 0-16, CEI 0-21, EN 50438:2013*, G59/3, IEC 60068-2-x, IEC 61727, IEC 62109-1/2, IEC 62116, NBR 16149, NEN EN 50438, NRS 097-2-1, PPC, RD 1699/413, RD 661/2007, Res. n°7:2013, SI4777, TOR D4, TR 3.2.2, UTE C15-712-1, VDE 0126-1-1, VDE-AR-N 4105, VFR 2014 |
|
Reference |
STP 20000TL-30 |
