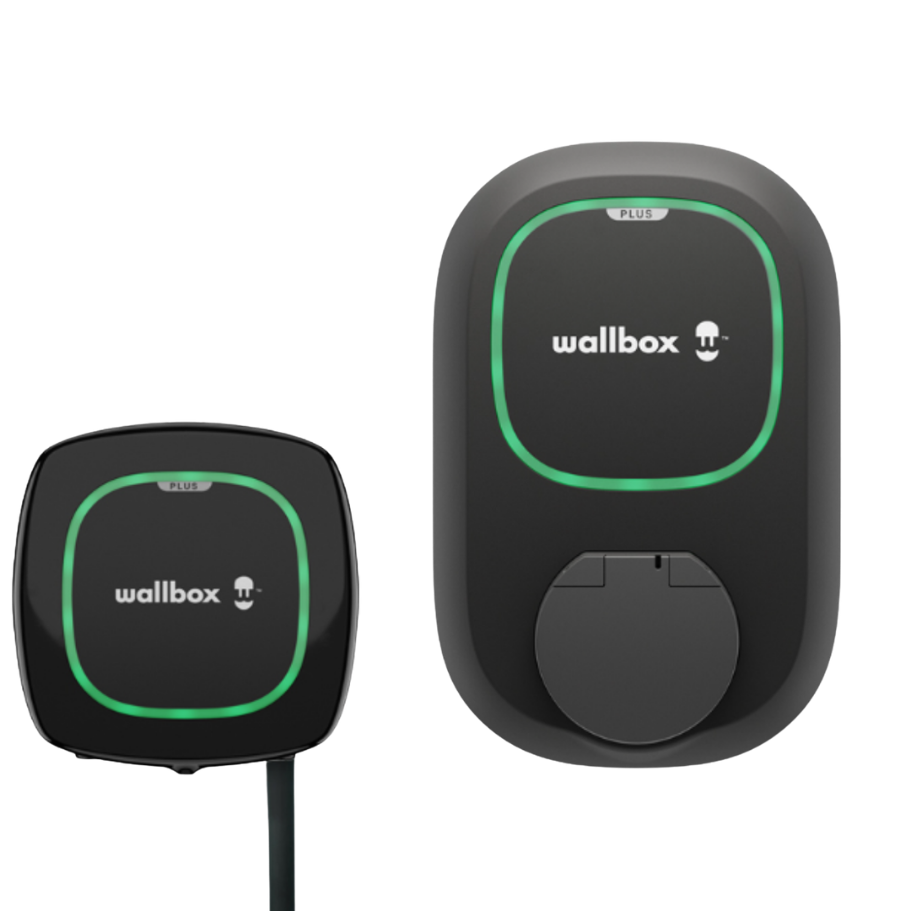

About Wallbox Pulsar Plus EV Charger
The Wallbox Pulsar Plus EV Charger is a compact, smart Level-2 home charging solution designed for efficient EV charging. Often searched as a wall box charger or wallbox charger, the Wallbox Pulsar Plus is the brand’s leading home EV charging solution available across Australia. It features Wi-Fi and Bluetooth connectivity, allowing users to control and monitor charging sessions through the myWallbox mobile app. The charger includes advanced features such as smart power sharing, dynamic load management, and configurable charging current from 6A up to the rated limit. With its small design, RGB LED status halo, and IP54/IP55 weather protection, the Pulsar Plus is suitable for both indoor and outdoor residential installations.
Versions & Power Classes of Wallbox Pulsar Plus EV Charger
The Pulsar Plus is available in multiple power versions to match different electrical systems. The most common configurations include 7.4 kW (single-phase), 11 kW (three-phase), and 22 kW (three-phase) models, with adjustable charging current up to 32 A. In some regions, such as North America, versions delivering 9.6 kW (40 A) and 11.5 kW (48 A) are also available for Level-2 charging. These power classes enable the charger to support a wide range of EVs and household electrical capacities while maintaining efficient, safe charging performance.
All Versions of Wallbox Pulsar Plus EV Charger
| Data |
Pulsar Plus |
Pulsar Plus Socket |
Pulsar Max Tethered/Socket |
| Max. charging power |
7.4 kW (Single Phase), 11 kW (3 Phase), 22 kW (3 Phase) |
| Dimensions (h x w x d) |
166 x 163 x 82 mm (without cable) |
204.3 x 313 x 142.5 mm |
198x201x99mm (without cable)/
204.3x313x142.5mm |
| Mains connection |
32 A (Single Phase)/ 16 A (3 Phase)/ 32 A (3 Phase)
Type 1 / Type 2 |
| Network connection |
Wi-Fi, Bluetooth |
Wi-Fi, Bluetooth |
Wi-Fi, Bluetooth |
| Installation type |
Wall-mounted |
Wall-mounted |
Wall-mounted |
| Weight |
1 kg (without cable) |
2.5 kg |
1.3 kg (without cable)/
2.5 kg |
| Use |
Indoor & outdoor |
Indoor & outdoor |
Indoor & outdoor |
Key Advantages for Solar System Owners
- Intelligent surplus solar charging maximizes self-consumption
- Seamless integration with Fronius inverters and battery systems
- Dynamic load management prevents grid overload
- Weather-resistant design rated for harsh Australian conditions
- Comprehensive app control for scheduling and monitoring
- Future-proof technology with regular software updates
- Australian electrical standards compliance and local warranty support
Smart Solar Integration with Wallbox Pulsar Plus EV Charger
The Wallbox Pulsar Plus EV Charger supports advanced smart solar integration, allowing homeowners to charge their electric vehicles using surplus energy generated from rooftop solar panels. When connected with a compatible energy management system such as Wallbox Power Meter or myWallbox App, the charger can dynamically monitor the household’s energy production and consumption. This enables the system to automatically adjust the charging power so that the EV uses excess solar energy first, rather than drawing electricity from the grid. By prioritizing solar power, users can significantly reduce charging costs and maximize the return on investment from their solar PV system.
Intelligent Charging Modes
Through Wallbox’s Eco-Smart charging mode, the Pulsar Plus offers two solar-optimized charging options. In Full Green Mode, the EV charges exclusively from surplus solar energy, meaning charging occurs only when the solar system produces more electricity than the home is using. In Eco Mode, the charger combines available solar generation with grid electricity to maintain a steady charging speed while still maximizing solar utilization. These smart energy features make the Pulsar Plus an excellent choice for solar-powered homes, helping users reduce carbon emissions, improve energy efficiency, and maximize renewable energy generation while charging their electric vehicles.
Battery System Compatibility
For homes equipped with solar battery storage, the Pulsar Plus can become part of a complete smart energy ecosystem. When integrated with a home energy management system and solar monitoring device such as the Wallbox Power Meter, the charger can coordinate EV charging with household energy storage.
In homes with solar batteries, excess solar energy can first be stored in the battery during peak sunlight hours and later used for EV charging when solar production drops. This approach helps homeowners maintain energy independence and reduce reliance on the grid. Priority settings can also be configured so that essential household loads are served first, while surplus energy is directed to the EV charger. This ensures the home battery retains sufficient charge for evening consumption while still enabling efficient vehicle charging.
Technical Specifications and Performance
Wallbox Pulsar Plus – Technical Specifications and Performance
| Product Name |
Pulsar Plus |
Pulsar Plus Socket |
Pulsar Max Tethered/Socket |
| Max. charging power |
7.4 kW (Single Phase), 11 kW (3 Phase), 22 kW (3 Phase) |
| Enclosure Dimensions (H×W×D mm) |
166 x 163 x 82 mm (without cable) |
204.3 x 313 x 142.5 mm |
198x201x99mm (without cable)/
204.3x313x142.5mm |
| Protection rating |
IP54 |
IP55 |
IP55 |
| EV Compatibility |
Type 1 and Type 2 |
Type 1 and Type 2 |
Type 1 and Type 2 |
| Weight |
1 kg (without cable) |
2.5 kg |
1.3 kg (without cable)/
2.5 kg |
| Operating Temperature |
-25 °C to 40 °C (50 °C derating) |
-30 °C to 40 °C |
-30 °C to 50 °C |
| Cable Length |
5 m / 7 m Tethered version |
No |
5 m / 7 m Tethered version |
| Network connection |
Wi-Fi, Bluetooth |
Wi-Fi, Bluetooth |
Wi-Fi, Bluetooth |
| App Control |
Yes |
Yes |
Yes |
| Weather Resistance |
Outdoors |
Outdoors |
Outdoors |
| Warranty (Years) |
3 years |
3 years |
5 years |
| Price (Approx. AUD) |
From $1,349 |
From $1,599 |
From $1,399 |
Vehicle Compatibility
The Pulsar Plus works with most modern electric vehicles that support AC charging, particularly those using the Type 2 connector standard widely used in Australia and Europe.
Compatible EVs include:
- Tesla Model 3, Model Y, Model S, Model X
- Hyundai Ioniq 5, Ioniq 6, Kona Electric
- Kia EV6 and Niro EV
- MG ZS EV and MG4
- BYD Atto 3
- Nissan Leaf
- Polestar 2
- BMW i4 and iX
- Mercedes EQA, EQB, EQC
- Audi e-tron models
- Most other Type-2 compatible electric vehicles
Actual charging speed will depend on the vehicle’s onboard charger capacity and the available electrical supply.
Safety Standards and Environmental Protection
The Pulsar Plus is engineered to meet international safety standards and provide reliable outdoor operation.
Key safety and durability features include:
- IP54 / IP55 weather protection rating
- Overcurrent and surge protection
- Integrated safety monitoring
- Operating temperature range approximately -30°C to +50°C
- UV-resistant enclosure for outdoor installations
- Smart firmware updates via the myWallbox App
These features make the charger suitable for residential garages, driveways, and outdoor wall installations.
Installation Requirements and Process
Professional installation is recommended to ensure the charger operates safely and efficiently.
Electrical Requirements
Typical installation requirements include:
- Dedicated 32A circuit breaker
- RCD protection (Type A minimum)
- Compatible single-phase or three-phase electrical supply
- Appropriate cabling sized according to installation distance
- Reliable Wi-Fi coverage for smart features
Installers may also integrate the charger with a home energy monitoring system to enable solar optimization and load balancing.
Warranty and Support
The Wallbox provides comprehensive warranty coverage and ongoing software support for the Pulsar Plus.
Warranty coverage typically includes:
- Standard manufacturer warranty (usually 3 years to 5 years, depending on region and models)
- Coverage for manufacturing defects and hardware failures
- Software updates through the myWallbox App
- Support through authorized installers and service partners
This support network ensures reliable long-term operation and continued feature improvements.
Wallbox EV Charger Price in Australia (2026)
The Wallbox Pulsar Plus EV Charger is considered a premium smart EV charging solution.
Typical pricing in Australia:
- Unit cost: approximately AUD $1,200 – $1,800
- Installation cost: usually AUD $700 – $1,500, depending on electrical work required
Prices vary based on electrical upgrades, installation complexity, and optional accessories such as power meters or load management systems.
Wallbox Pulsar Max vs Wallbox Pulsar Plus — Which Is Right for You?
If you’re comparing the Wallbox Pulsar Max and the Wallbox Pulsar Plus, both are excellent smart home EV chargers available in Australia — but they are designed for slightly different needs and budgets. Here’s a clear breakdown to help you choose the right wall box charger for your home.
Wallbox Pulsar Plus — Best Value Smart EV Charger
The Wallbox Pulsar Plus is the most popular Wallbox EV charger among Australian homeowners. It delivers up to 22kW of AC charging power, supports both single-phase and three-phase electrical connections, and comes packed with smart features including Wi-Fi, Bluetooth, the myWallbox App, solar integration, and dynamic load management — all in a unit smaller than a toaster.
Best for:
- Homeowners who want a reliable, feature-rich smart EV charger at a competitive price
- Solar panel owners looking to maximise self-consumption by charging from surplus solar energy
- Renters or owners who need a compact, lightweight unit that can be installed almost anywhere
- Those who want smart scheduling, app control, and solar charging without paying a premium
Starting price in Australia: from AUD $1,349 (unit only, excluding installation)
Wallbox Pulsar Max — Best for Durability and Long-Term Peace of Mind
The Wallbox Pulsar Max is the premium upgrade in the Wallbox Pulsar family. It shares the same core smart charging capabilities as the Pulsar Plus but steps things up with a more robust build, better weather protection, and a longer warranty — making it particularly well suited to harsh Australian outdoor environments.
Best for:
- Homeowners who want maximum durability and the longest possible warranty coverage
- Outdoor installations exposed to direct sun, rain, coastal salt air, or extreme heat
- Those who prefer a set-and-forget charger with minimal long-term maintenance concerns
- EV owners planning to keep their charger for 5+ years and want full manufacturer-backed protection
Starting price in Australia: from AUD $1,399 (unit only, excluding installation)
Wallbox Pulsar Max vs Pulsar Plus — Side-by-Side Comparison
| Feature |
Wallbox Pulsar Plus |
Wallbox Pulsar Max |
| Max Charging Power |
7.4kW / 11kW / 22kW |
7.4kW / 11kW / 22kW |
| Weather Protection |
IP54 |
IP55 |
| Warranty |
3 Years |
5 Years |
| Wi-Fi & Bluetooth |
Yes |
Yes |
| myWallbox App Control |
Yes |
Yes |
| Solar Integration |
Yes |
Yes |
| Cable Length |
5m or 7m |
5m or 7m |
| Type 2 Connector |
Yes |
Yes |
| Indoor & Outdoor Use |
Yes |
Yes |
| Starting Price (AUD) |
From $1,349 |
From $1,399 |
So, Which Wallbox Charger Should You Choose?
The honest answer is — you can’t go wrong with either. Both are among the best wall box chargers available in Australia, and both will deliver fast, smart, solar-compatible EV charging for years to come.
However, as a simple guide:
- Choose the Wallbox Pulsar Plus if you want the best combination of smart features and value for money. For most Australian homes, it is more than capable and will perform brilliantly.
- Choose the Wallbox Pulsar Max if your charger will be permanently exposed to the elements, you live in a coastal or extreme-climate area, or you simply want the longest warranty and most rugged build available.
Either way, Aussie Solar Tech can supply and install both models across NSW. Contact us today for a free quote, and our team will recommend the right Wallbox EV charger for your home, budget, and electrical setup.
Government Incentives and Rebates
Australian homeowners may be eligible for various incentives that reduce the effective cost of EV charger installation:
- State-based EV charging rebates (varies by location)
- Solar battery and energy management incentives
- Small-scale technology certificates for integrated systems
- Local council sustainability programs
Eligibility and amounts vary significantly by state and territory. Consult with your installer or local energy authority to identify applicable programs in your area.
Return on Investment
For homeowners with rooftop solar systems, the Pulsar Plus can significantly reduce EV charging costs.
Example scenario:
- Annual driving distance: 15,000 km
- Energy consumption: ~2,250 kWh per year
- Grid charging cost: ~$675 per year
- Solar charging cost: ~$135 opportunity cost
Estimated annual savings: about $500+
Over the charger’s lifetime, solar-powered EV charging can deliver substantial financial savings while reducing carbon emissions.
Frequently Asked Questions – Wallbox EV Charger in Australia
Q: How much does a Wallbox EV charger cost in Australia?
The Wallbox Pulsar Plus price in Australia starts from approximately AUD $1,349 for the unit alone (excluding installation). The Wallbox Pulsar Max starts from around AUD $1,399. Installation costs typically range from $700 to $1,500, depending on your home’s electrical setup, power phaser, and cabling requirements. Contact Aussie Solar Tech for a fixed-price quote including supply and installation anywhere in Australia.
Q: What is the difference between the Wallbox Pulsar Plus and the Wallbox Pulsar Max?
Both are compact, smart wall box chargers, but the Wallbox Pulsar Max is the premium model. Key differences include a longer 5-year warranty (vs 3 years on the Pulsar Plus), a higher IP55 weather rating (vs IP54), and a more rugged enclosure suited to harsh Australian outdoor conditions. The Pulsar Max is recommended if long-term durability and peace of mind matter most. The Pulsar Plus offers excellent smart charging performance at a lower entry price.
Q: Where can I buy a Wallbox EV charger in Australia?
You can purchase the Wallbox EV charger in Australia directly through Aussie Solar Tech. They supply and professionally install Wallbox Pulsar Plus and Pulsar Max chargers across NSW, VIC, QLD, SA, WA, and the ACT — including Sydney, Melbourne, Brisbane, Perth, Adelaide, and Canberra.
Q: Is the Wallbox charger compatible with Australian electrical standards?
Yes. The Wallbox Pulsar Plus and Pulsar Max are fully compatible with Australian electrical standards. They support both single-phase (32A) and three-phase (16A/32A) supplies and use the Type 2 connector, which is the standard for EV charging in Australia. CEC-accredited electricians perform installations carried out by Aussie Solar Tech and comply with Australian wiring rules and AS/NZS standards.
Q: Does the Wallbox EV charger work with solar panels in Australia?
Absolutely. Using the myWallbox App and an optional Wallbox Power Meter, the charger can detect surplus solar energy and automatically redirect it to charge your EV. This reduces grid consumption and lowers charging costs significantly. It also features an Eco-Smart mode with Full Green (solar-only) and Eco (solar + grid blend) options.
Q: Can the Pulsar Plus charge any electric vehicle available in Australia?
Yes. The Wallbox Pulsar Plus is compatible with virtually all electric vehicles sold in Australia that support AC charging via a Type 2 connector. This includes Tesla Model 3 and Model Y, Hyundai Ioniq 5 and Ioniq 6, Kia EV6, BYD Atto 3, MG ZS EV and MG4, Polestar 2, BMW i4, Mercedes EQA/EQB/EQC, Audi e-tron models, Nissan Leaf, and many more.
Q: Can the Wallbox charger be installed outdoors in Australia?
Yes. Both models are built for indoor and outdoor installation, with an IP54 rating (Pulsar Plus) or IP55 rating (Pulsar Max). They are UV-resistant and rated to operate in temperatures from -25°C to 50°C. They can be safely wall-mounted in driveways, garages, carports, or exterior walls.
Q: Are there any government rebates for Wallbox EV charger installation in Australia?
Rebate availability varies by state and territory. Some states offer EV-related incentives. If you are integrating your Wallbox charger with a solar or battery system, you may be eligible for additional energy management incentives or Small-scale Technology Certificates (STCs). Aussie Solar Tech can help you identify which rebates and incentives apply in your area.
Q: What smart features does the Wallbox Pulsar Plus offer?
The Wallbox Pulsar Plus is a fully smart wall box charger packed with features, including Wi-Fi and Bluetooth connectivity, the myWallbox App for remote monitoring and scheduling, Power Boost dynamic load management, Power Sharing across multiple chargers, Eco-Smart solar charging mode, OCPP compatibility for third-party energy management, and over-the-air firmware updates. All features are managed through an intuitive app available on iOS and Android.
Q: How long does it take to install a Wallbox EV charger?
A standard Wallbox EV charger installation by a certified electrician typically takes 2 to 4 hours for a straightforward setup. More complex installations — such as those requiring a switchboard upgrade, long cable runs, or three-phase connection — may take longer.
Order Your Wallbox Pulsar Plus
Upgrade your home EV charging experience with the Wallbox Pulsar Plus EV Charger. Contact a certified installer, request a quote, or explore installation options to start charging your electric vehicle with smart solar energy today.
